Why Does Poor Casting Cause Cracks, Deformation, and Inconsistent Quality in Ceramic Sanitary Ware?
Many importers and project buyers experience the same problems after receiving ceramic sanitary ware. Products may show cracks, warping, uneven wall thickness, or glaze defects after firing. These issues increase replacement costs, delay installations, and damage brand reputation. In most cases, the root cause is not the glaze or kiln but an unstable forming process. Modern high-pressure casting solves these challenges by producing dense and uniform ceramic bodies with excellent dimensional accuracy before firing. Combined with automated production and tunnel kiln firing, it ensures consistent product quality, higher efficiency, and lower defect rates. This is why leading sanitary ware factories have largely replaced traditional slip casting with advanced high-pressure casting technology.
High-pressure casting is an advanced ceramic forming process that injects ceramic slurry into porous resin molds under 8–15 bar pressure, producing highly consistent green bodies for sanitary ware. At WEESUM, we combine this technology with automated production and tunnel kiln firing to manufacture premium ceramic basins and toilets for global OEM and ODM customers.
Understanding how high-pressure casting works helps buyers evaluate factory capability, product consistency, production efficiency, and long-term supply reliability. The following sections explain its working principles, industrial applications, major advantages, and how to choose the right manufacturing partner.

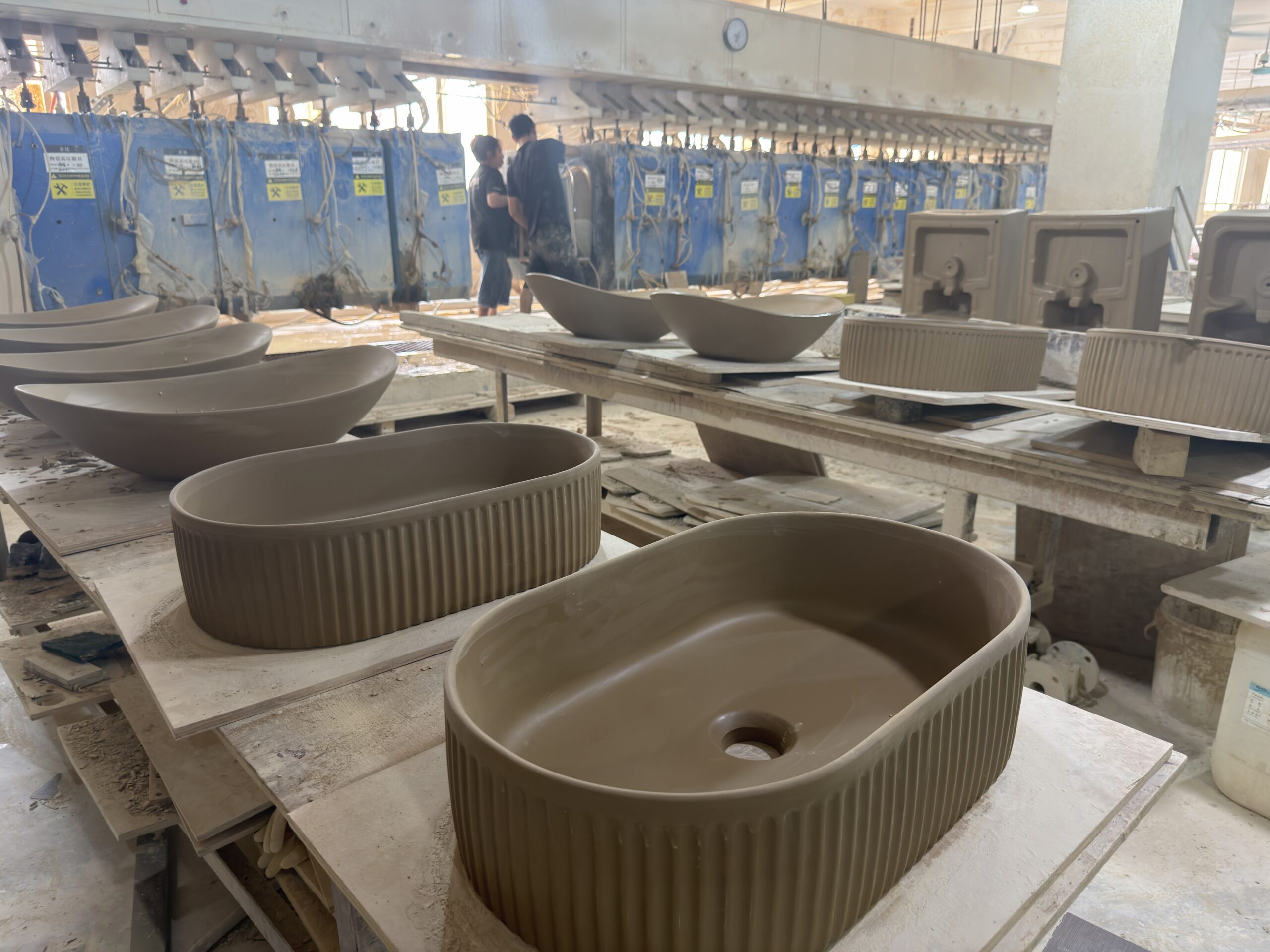

The Mechanism of High Pressure Casting
High-pressure casting is an automated ceramic forming technology that replaces conventional plaster mold casting with durable resin molds. Ceramic slurry is injected into a closed mold under controlled pressure, allowing water to pass through the mold while ceramic particles rapidly consolidate into a dense green body.
The production sequence generally includes:
- Preparation of high-quality ceramic slurry.
- Injection into precision resin molds.
- Application of 8–15 bar casting pressure.
- Rapid water removal through mold permeability.
- Automatic mold opening and product release.
- Drying, trimming, glazing, and tunnel kiln firing at 1,200–1,280°C.
Because pressure is carefully controlled throughout the forming cycle, the ceramic body develops uniform density and thickness. This significantly reduces internal stress, minimizes deformation during firing, and improves dimensional accuracy. For any Manufacturer producing large volumes of sanitary ware, high-pressure casting delivers repeatable quality while supporting efficient OEM, ODM, and Customizable production requirements.
| Technical Parameter | Traditional Slip Casting | High Pressure Casting |
|---|---|---|
| Mold Material | Plaster | Resin |
| Casting Pressure | Natural Absorption | 8–15 bar |
| Forming Time | 30–60 min | 5–15 min |
| Dimensional Accuracy | Medium | High |
| Automation | Low | Fully Automated |
Applications in Sanitaryware Manufacturing
Today, high-pressure casting has become the preferred production method for manufacturing premium ceramic sanitary ware. It is especially suitable for products requiring complex shapes, thin-wall structures, and high dimensional precision.
Typical applications include:

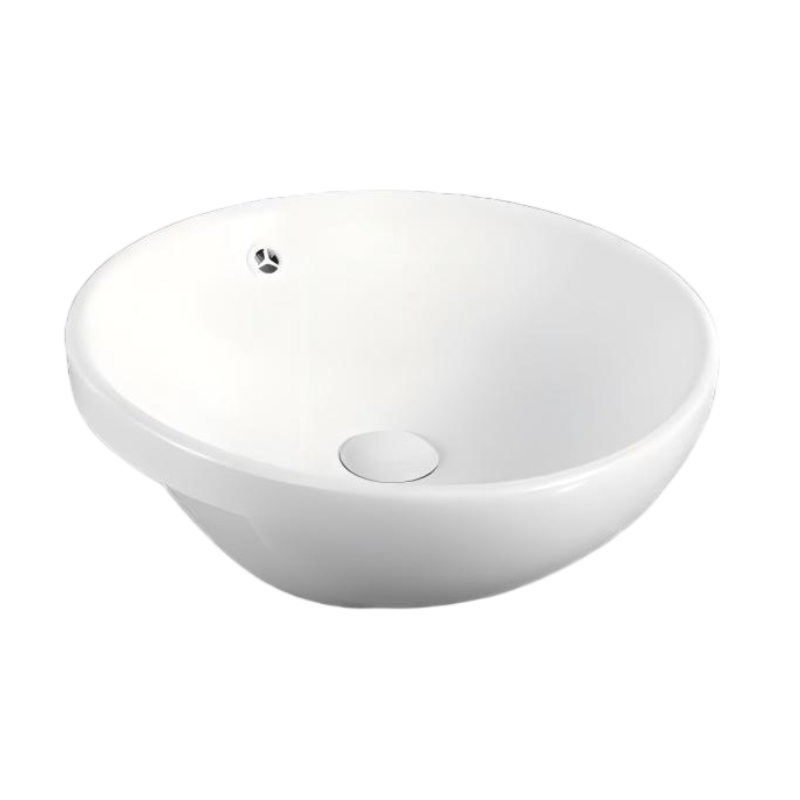

- Countertop ceramic basins.
- Wall-hung basins.
- Pedestal basins.
- Undercounter basins.
- One-piece toilets.
- Two-piece toilets.
- Wall-hung toilets.
- Smart toilet ceramic bodies.
The technology supports high-volume manufacturing while maintaining stable quality across every production batch. For international Supplier partnerships, this consistency is essential because distributors and project contractors expect identical specifications throughout long-term procurement programs. Combined with automated glazing and continuous tunnel kiln firing, high-pressure casting enables reliable production for residential, hospitality, commercial, and engineering projects worldwide.
Advantages of High Pressure Casting
The greatest advantage of high-pressure casting is its ability to combine production efficiency with exceptional product consistency. Compared with traditional methods, it shortens production cycles while significantly reducing defects.
- Higher green body density.
- Uniform wall thickness.
- Reduced firing deformation.
- Lower cracking risk.
- Excellent dimensional repeatability.
- Higher production capacity.
- Reduced labor dependence.
- Lower overall manufacturing cost.
Products formed by high-pressure casting also perform better during glazing and firing because their dense structure absorbs glaze more uniformly. After tunnel kiln firing, finished ceramics typically achieve water absorption below 0.5%, superior mechanical strength, smooth surfaces, and long service life. These benefits make the technology ideal for Manufacturer operations serving demanding wholesale, OEM, and ODM markets.
| Performance Indicator | Conventional Casting | High Pressure Casting |
|---|---|---|
| Production Efficiency | Standard | High |
| Wall Thickness Consistency | Moderate | Excellent |
| Defect Rate | Higher | Lower |
| Labor Requirement | High | Low |
| Batch Stability | Average | Outstanding |
How to Select a Suitable High-Pressure Sanitary Ware Casting Machine Supplier?
Choosing the right Supplier requires evaluating more than machine specifications. Buyers should assess the supplier’s manufacturing experience, automation capability, quality control system, and technical support.
Important evaluation criteria include:
- Experience with high-pressure casting technology.
- Stable integration with automated production lines.
- Compatibility with tunnel kiln firing.
- ISO 9001 quality management system.
- Production capacity for large-volume orders.
- After-sales technical service.
- Availability of spare parts and maintenance.
- Support for Customizable, OEM, and ODM projects.
WEESUM is a professional Manufacturer with more than 30 years of ceramic sanitary ware experience. Our factory operates over 30 advanced high-pressure casting lines, automated production equipment, and continuous tunnel kiln technology to ensure consistent quality. Supported by international certifications and strict inspection procedures, we provide reliable ceramic basins and toilets for wholesalers, distributors, contractors, and private-label customers worldwide.
Conclusion
High-pressure casting has become the industry standard for producing durable, precise, and consistent ceramic sanitary ware. If you are searching for an experienced Manufacturer offering OEM, ODM, and Customizable solutions, contact WEESUM today to discuss your wholesale or project requirements.
